Brightnex LED Lighting

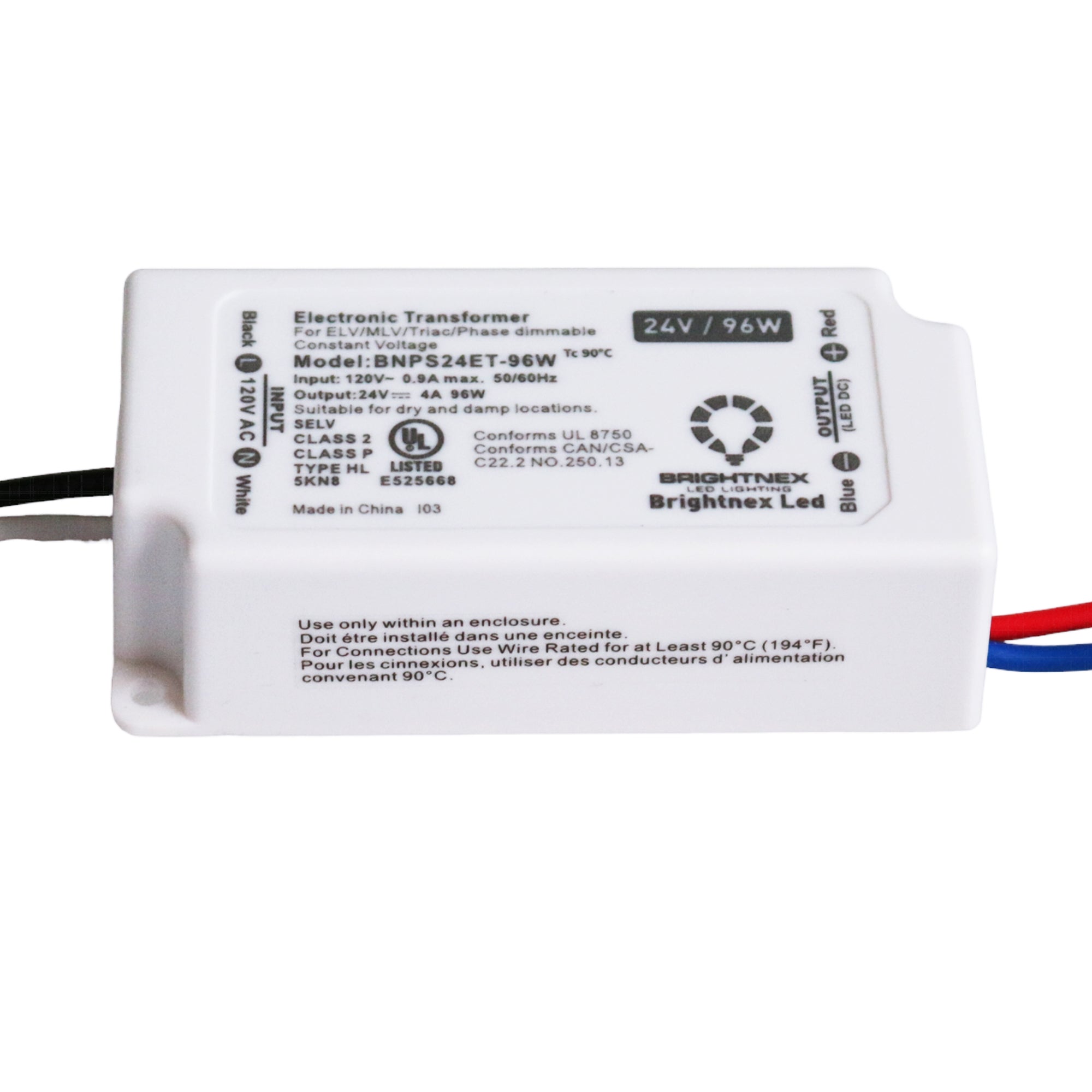

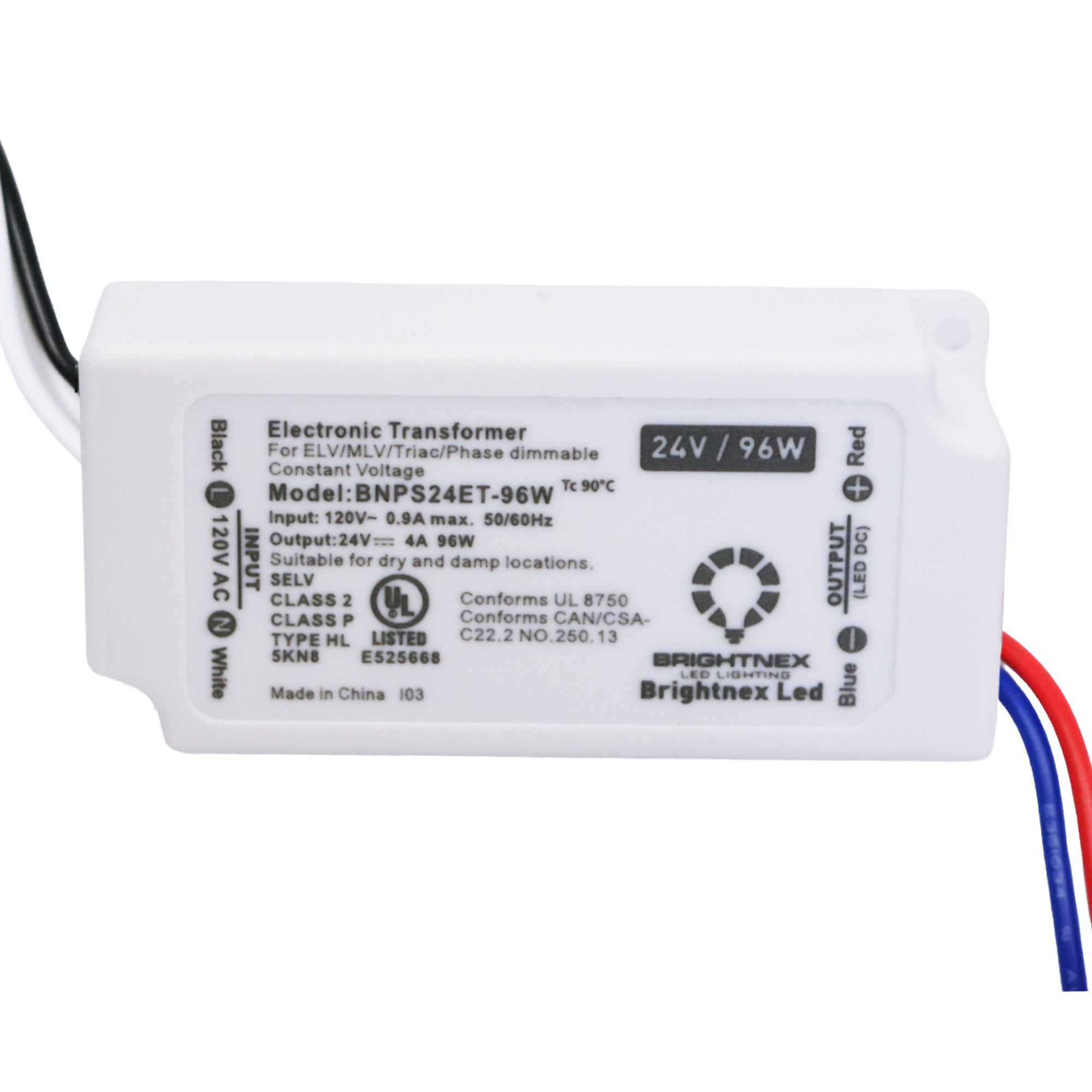

Compact DIMMABLE TRANSFORMER (LED Driver), 24V, 96W
The most compact (3.31x1.57x0.98 inch (L*W*H)) UL-certified dimmable transformers (LED Driver) compatible with Triac/ ELV/ MLV dimming. Suitable for dry and damp locations and fits in a 4" Junction box. AC input 100-130Vac and 88% efficiency with short circuit protection.
Input: 100-130 V AC, 0.7A, 50/60Hz
Output: 24V DC, 4 A, 96W, PF>0.9
Feature

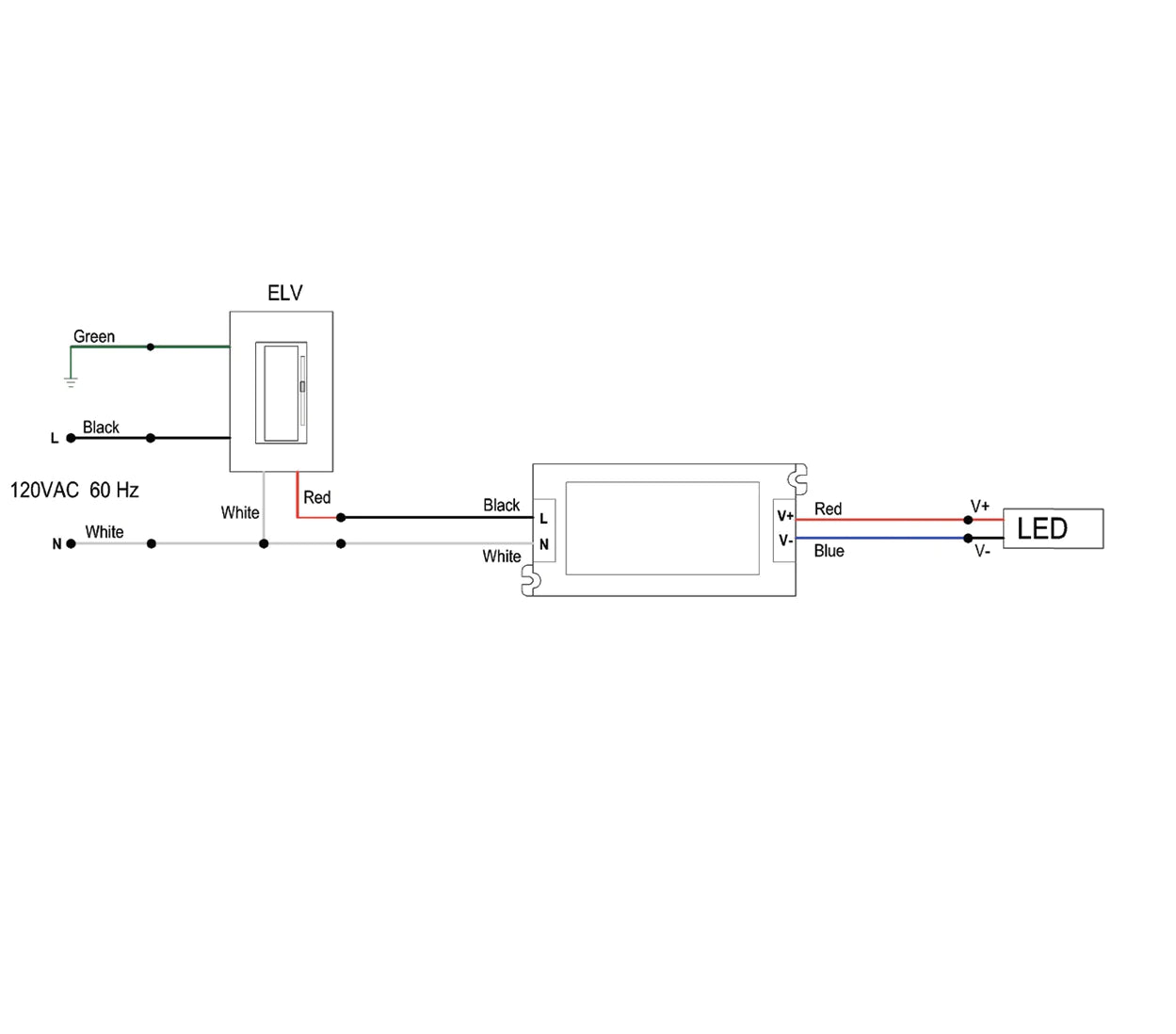

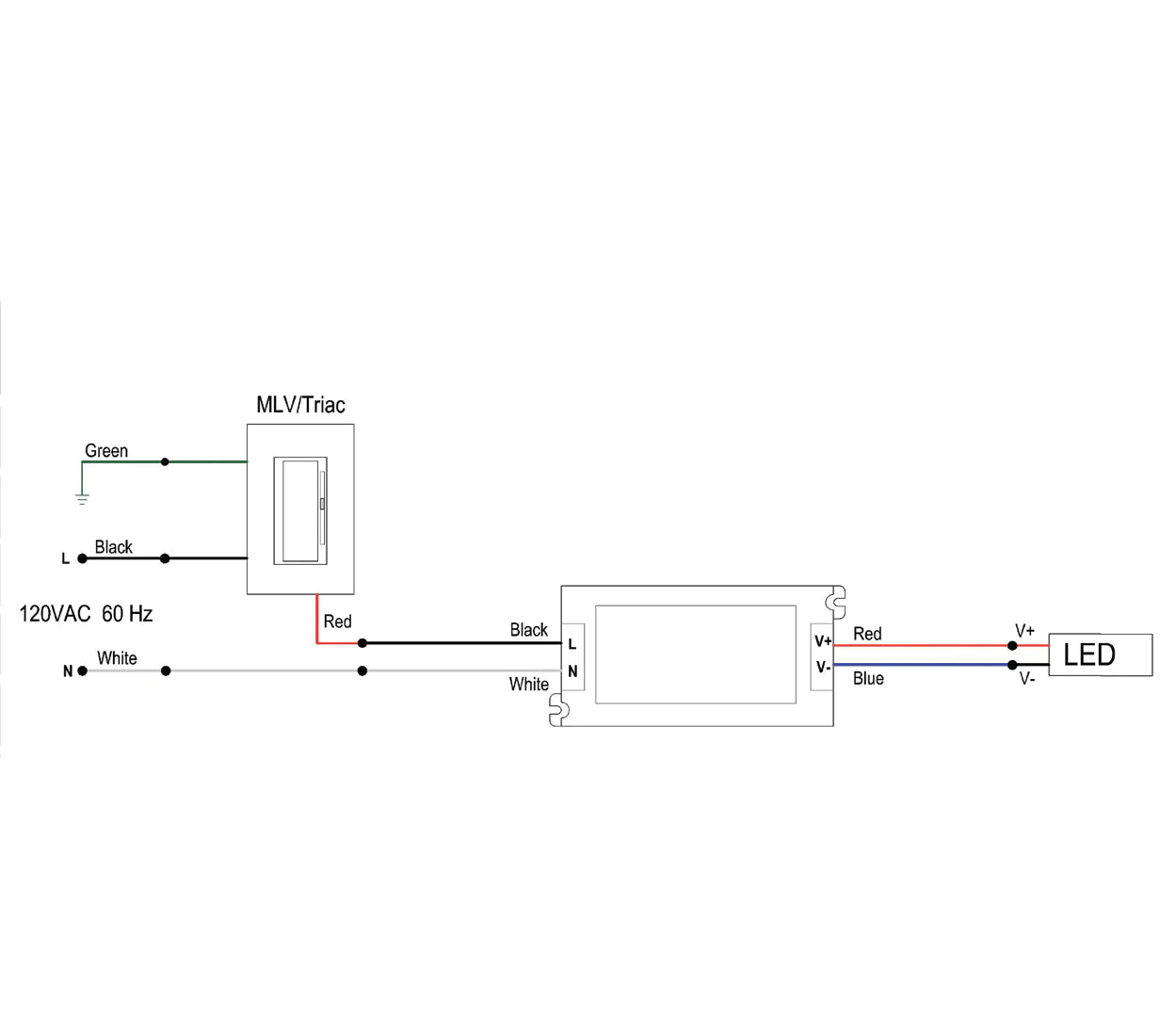

Dimming: Triac/ ELV/ MLV dimming |
Dimming 0-100% |
UL-RC, Class 2, Type HL |
Damp and dry location |
100-130Vac input |
Build in active PFC, typical power factor=0.94 |
THD<20%@120V Max. load |
Constant voltage type |

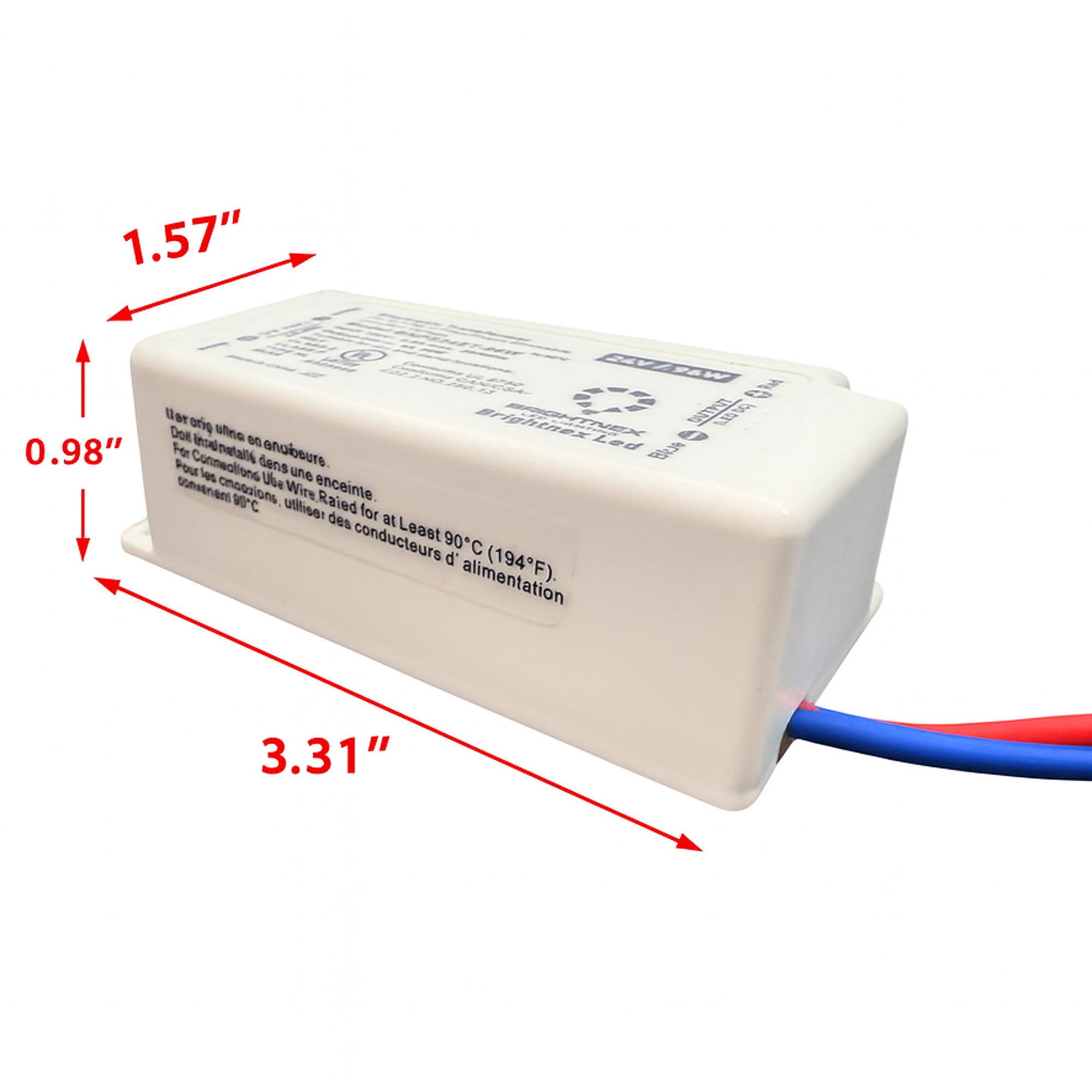

Small size: 3.31x1.57x0.98 inch (L*W*H) |
Super low loading request works perfect at 20-100% load. |
Short-circuit, over-load protection. |
3 years warranty |
Compatible with popular dimmers in the market, Lutron-CL, Diva series |
![Compact DIMMABLE TRANSFORMER (LED Driver), 24V, 96W](http://brightnexled.com/cdn/shop/files/Compacttranformers24V-96ul_e56e3f2a-2800-478b-871d-7a71a165ec8f.jpg?v=1695414822&width=1445)
![Compact DIMMABLE TRANSFORMER (LED Driver), 24V, 96W](http://brightnexled.com/cdn/shop/files/Compacttranformers24V-96ul2_e5ed55e1-1525-4e6d-99c9-4b70145ff7ad.jpg?v=1695414822&width=1445)
![Small size ELV/ MLV/ TRAC DIMMABLE TRANSFORMER, 24V, 60W, 96W](http://brightnexled.com/cdn/shop/files/Smalltransformers3_2ae4b897-4bb2-43b1-a4c4-b490c823743e.webp?v=1695414822&width=1445)
![Small size ELV/ MLV/ TRAC DIMMABLE TRANSFORMER, 24V, 60W, 96W](http://brightnexled.com/cdn/shop/files/Smalltransformers2_06039f3e-9679-4725-aaad-2cb89962fd52.webp?v=1695414822&width=1445)
