Description

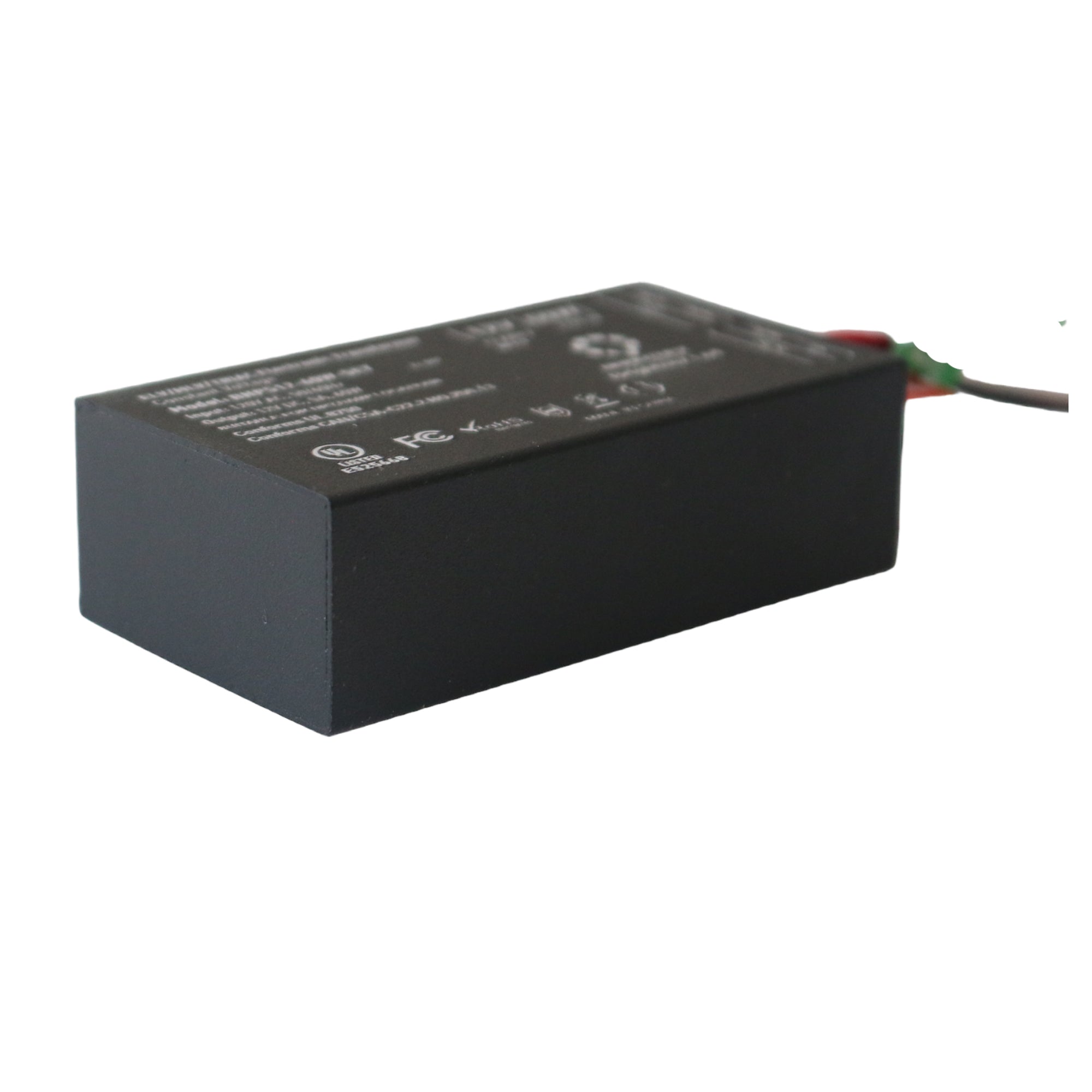

This smallest constant‑voltage 12V LED transformer delivers up to 60 W of load capacity in an ultra‑compact package, designed for installations where space is limited but dimming performance cannot be compromised. Engineered with UL Class 2 certification, the unit supports TRIAC/ELV/MLV dimming interfaces for flicker‑controlled light output down to 0 %.
The transformer’s reduced footprint (approx. 2.83″ × 1.53″ × 0.79″) allows for seamless integration inside 4″ junction boxes and other confined electrical enclosures. Built‑in protection features including short‑circuit and overload protection help maintain system reliability in both dry and damp locations.
🔹 Key Features:
-
Input Voltage: 120 VAC, 47–63 Hz
-
Output: 12 V DC, 5 A, 60 W constant voltage
-
Compact form factor ideal for tight wiring spaces (2.83″ × 1.53″ × 0.79″)
-

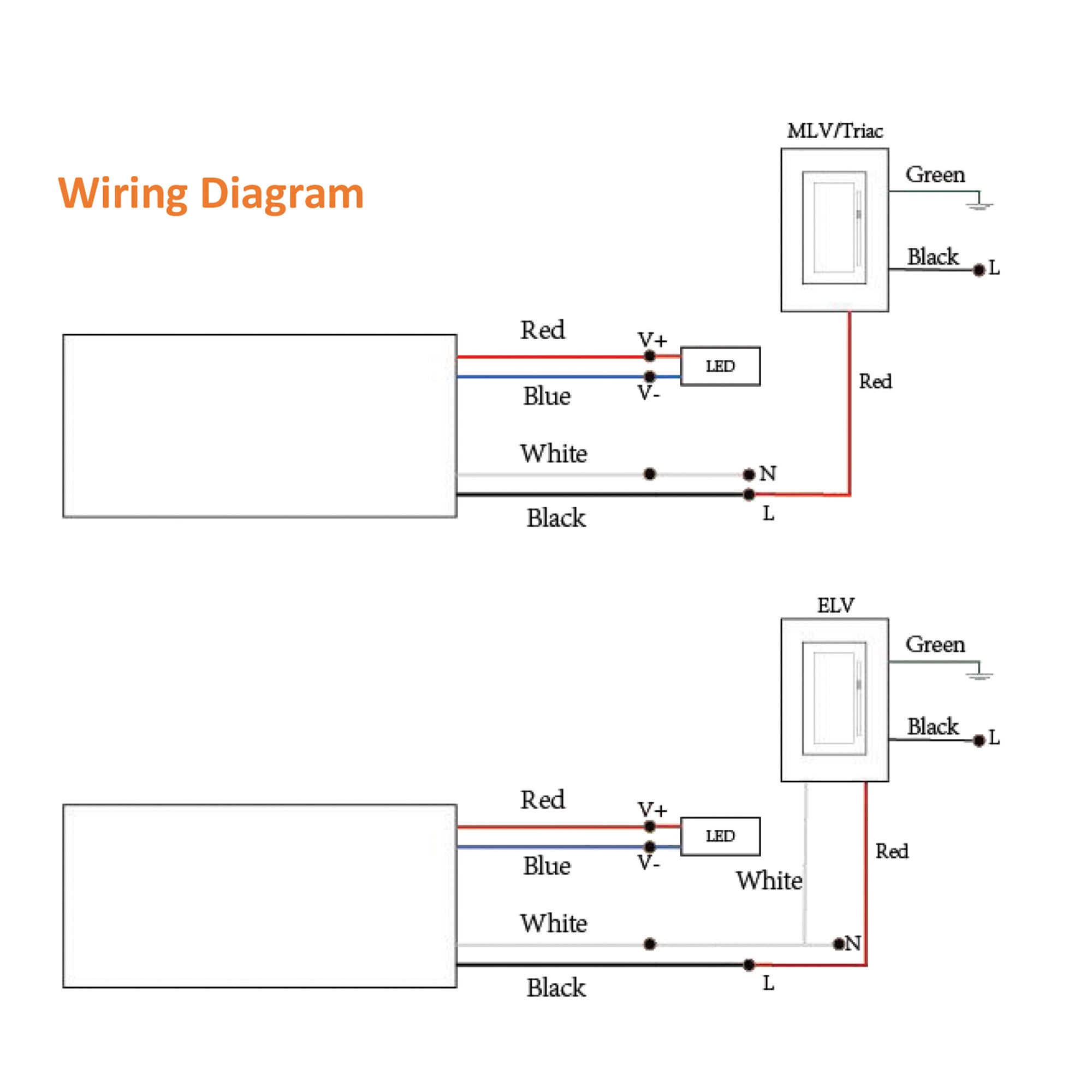

Dimming Compatibility: TRIAC / ELV / MLV dimmers, 0–100 % range
-
UL Certified: Class 2, Type HL
-
Suitable for dry and damp locations
-
Built‑in safety protections (short‑circuit, overload)
-
Typical efficiency ~88 % with active PFC and PF > 0.9
🔹 Typical Applications:
-
Low‑voltage LED strip and module installations
-
Accent and architectural lighting systems
-
Under‑cabinet and display lighting
-
Retail lighting and custom lighting designs
🔹 Model Reference:
BNPS12‑60W‑SET
